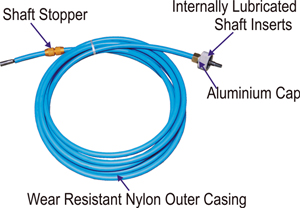

Flexible Shafts

For BPC-2 & BPC-3, Flexible Shaft with stainless steel inner core can be supplied if specified by client.

While ordering flexible shafts & accessories, each item should be ordered for specific tube/pipes size or size range.
Stainless steel inner core ensures our shafts have longest life, resistance to corrosion,

To order flexible shaft (s) determine tube I.d. & Length of longest tube (s). Order flexible shaft(s) to correspond with tube I. D.(s), & length. Please ask for special or longer length.

Flexible Shafts

Tube ID range
Mm.
Inch
Flexible Shaft
Model No.
Flexible shaft Length
Mm.
Inch
Nylon Casing O. D.
Mm.
Inch
Inner Core O. D.
Mm.
Inch
Tool End
Thread
6.4-9.5
1/4-3/8
NFSC-701-12
12
3.7
1/4
6.4
1/8
3.2
8-32 F
NFSC-701-25
25
7.6
11.1-12.7
7/16-1/2
NFSC-702-12
12
3.7
3/8
9.5
1/4
6.4
1/4-28 F
NFSC-702-17
17
5.2
NFSC-702-25
25
7.6
NFSC-702-35
35
10.7
NFSC-702-45
45
13.7
14.3-25.4
9/16-1
NFSC-703-12
12
3.7
1 /2
12.7
5/16
7.9
1/4-28 F
NFSC-703-17
17
5.2
NFSC-703-25
25
7.6
NFSC-703-35
35
10.7
NFSC-703-45
45
13.7
NFSC-703-60
60
18.3
NFSC-703-75
75
22.9

CHILLER TUBE CLEANING SYSTEM / MODEL BPC 3-45

Model No. BPC3-45 chiller tube cleaning system uses a 3/4 HP motor for tougher deposits. A 2 directions foot switch is provided for cleaning internally enhanced tubes.

CONTENTS:
* BPC-3 Tube cleaners-1
* NFSC-703-45 Flexible Shafts-2
* Nylon Brush (Specify Size)- 25
* Two Direction Foot Switch-1
* Repairing kit for flexible shaft NFSC-703 consisting of 4
   drive couplings, 4 tool end couplings, 1 crimping tool with    punch, 1 flexible shafts lubricator, & 2 bottles of lubricant   Tubes.
Chiller Tube Cleaning System
